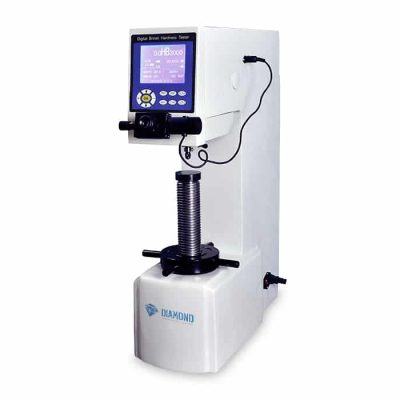

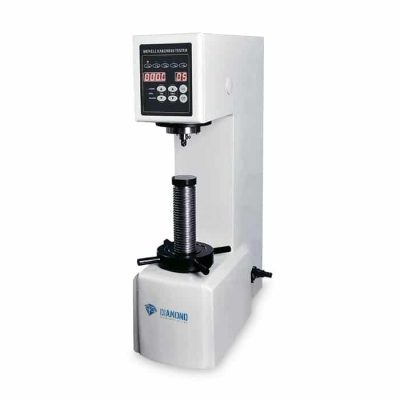

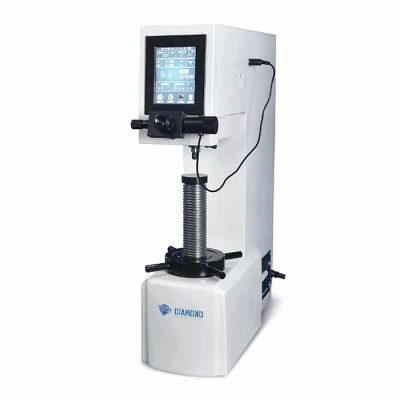

Brinell Hardness Tester

Brinell scale was first proposed by the Swedish engineer named Johan August Brinell in the year 1900. This scale was the first standardized and reliable hardness test used to control the quality of steel. It can be widely used in the field of engineering and metallurgy. The working solution was to press a railway wheel-bearing ball into the material and determine the size of the mark it left. The limitations of this scale include the huge size of indentation as well as the possible damage to its test-piece. However, for steels, the hardness value divided by two gives the approximate UTS in ksi unit. This feature contributes especially to its early implementation over competing hardness tests.

The Brinell hardness test method follows ASTM E10 standards to inspect the materials whose structure is too coarse or having a rough surface that can be tested using another method such as castings and forgings. This test often uses a very high test load (3000 kgf) as well as a 10mm diameter indenter where the resultant indentation averages out most of the surface and sub-surface inconsistencies.

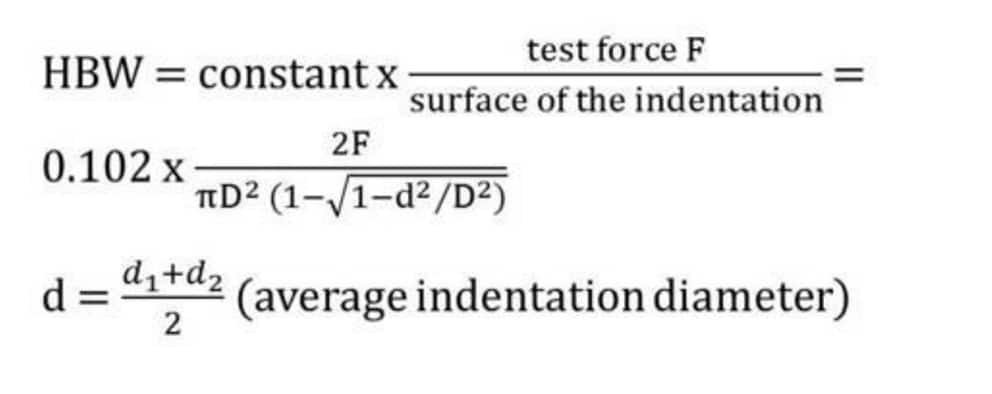

The Brinell method employs a predetermined test load (F) to a carbide ball of static diameter (D) held for predetermined time duration and then removed. The resultant impression is determined using a specifically designed Brinell microscope or optical system across a minimum of two diameters especially at right angles to each other, and then these results are averaged (d). Though the below mentioned calculation can be used to derive the Brinell number, a chart is often required to change these averaged diameter measurements to a Brinell hardness number. The common test forces vary from 500kgf often applied for non-ferrous materials to 3000kgf used for cast iron and steels. There are other Brinell scales available with a load as low as 1kgf as well as 1mm diameter indenters, however, these are used infrequently nowadays.

where,

D = Ball diameter

d = impression diameter

F = load

HB = Brinell result

Usually, the major source of error in Brinell testing is the determination of the indentation. Due to discrepancies among the operators, while deriving the measurements, the outcomes may differ even under ideal conditions. Less than ideal conditions can lead to an increase in significant variation. The test surface is frequently prepared using a grinder to eliminate surface conditions.

The pointed edge makes it difficult to interpret the indentation. Moreover, when operators are aware of the specification limits for rejects, they can be influenced to view the measurements in a way that raises the percentage of ‘good’ tests with less number of re-testing.

See Other Applications:

Why Global Clients Choose Us?

25 Years of Expertise

We have 25 years of experience in the professional production of hardness testing devices, an annual output of more than 10,000 hardness testers.

Talented Engineers and support team

As of September 2020, we have a total of 125 employees, including nearly 35 professional and technical workers who are masters or doctorate degree holders.

Advanced production equipment

We have Complete machining workshop, CNC, CNC machine tools, and more than 50 other types of processing equipment,to ensure high-precision product parts.

Excellent After-Sales Service

We provided excellent after-sales service, including fast delivery, online training,  immediate feedback of trouble shotting.

Welcome To Visit Us At Anytime

Need Any Help?

You tell us what you want, and we tell you our solution.

About Brinell Hardness Testers You Should Know

  1. What are the advantages of Brinell hardness testers?

Brinell hardness testers can be used to inspect the hardness of non-homogeneous materials (the materials where the properties are not persistent throughout the specimen). This non-destructive testing works by using varied forces as well as different indenters.



  1.     What are the testing standards for Brinell hardness testers?

Brinell hardness testers follow US, European, and International standards:

  • US standard (ASTM International)

  “ASTM E10-14: Standard method for Brinell hardness of metallic materials”.

  • International (ISO) and European (CEN) Standard

  “EN ISO 6506-1:2005: Metallic materials – Brinell hardness test – Part 1: test method”.

  “EN ISO 6506-2:2005: Metallic materials – Brinell hardness test – Part 2: verification and calibration of the testing machine”.

  “EN ISO 6506-3:2005: Metallic materials – Brinell hardness test – Part 3: calibration of reference blocks”.

  “EN ISO 6506-4:2005: Metallic materials – Brinell hardness test – Part 4: Table of hardness values”.



  1.     What is the working methodology of the Brinell hardness test?

The Brinell hardness testing machine presses a tungsten carbide ball into the sample, and optically measures the diameter of the impression. This instrument is performed using a Brinell hardness test unit. The other parameters of the Brinell machine include the following features:

  Loads: From 1 kgf to 3000 kgf

  Indenter sizes: 1, 2.5, 5 and 10 mm

  Maximum hardness: 650 HBW

There are two types of technological remedies to counter Brinell measurement error issues, which have been developed over the years. Automatic optical Brinell scopes, like the B.O.S.S. system, employ computers as well as image analysis to view the indentations in a constant manner. This standardization helps in eliminating the operator subjectivity so that these operators remain less prone to view in-tolerance results automatically if the sample’s result goes out-of-tolerance.

Brinell units work as per the ASTM E103 standards while measuring the samples using Brinell hardness parameters along with a Rockwell hardness method. This method delivers the most repetitive results with greater speed since the notions of optical interpretations are eliminated by using an automatic mechanical depth measurement.

However, in this method, the results may not be strictly consistent with Brinell results due to the application of varied test methods – a counterbalance to the outcomes may be required for some materials. It will be easier to establish the right values in those cases where this arises as an issue.



  1.     What is the procedure to calculate Brinell hardness?

The Brinell hardness test can be easily explained as an indentation hardness test, which consists of two basic steps:

Step one: Implement the known force through the known indenter perpendicular to the test material. Hold the known force for a specific duration (dwell time).

Step two: Measure the diameter of the resultant indentation in a minimum of two directions perpendicular to each other. Take the mean of these diameter measurements. The Brinell hardness value is then computed from this mean value using the mathematical formula designed exclusively for this purpose. Else, the value can be detected more frequently from a chart based on the given formula.



The Brinell hardness test is an optical method where the indentation size left by the indenter is measured. Contrary to the similar optical Vickers method, which involves a pyramid-shaped indenter being pressed into the specimen, the Brinell testing method uses a spherical indenter. The larger the indent left in the workpiece (specimen) surface by the Brinell indenter with a well-defined ball diameter and test force, the softer will be the test material. In order to calculate the Brinell hardness (HBW) according to the ISO 6506 standards, the hard spherical metal (tungsten carbide) indenter is pressed into a workpiece (specimen) with a well-defined test load (between 1 kgf to 3000 kgf).

The Brinell hardness (HBW) is determined from the quotient of the applied test force (F in newtons (N)) as well as the surface area of the residual indent upon the specimen (the indent projection) after removing the test force, as seen in the formula below. To determine the surface area of the residual spherical indentation, the arithmetic average (d) of the two perpendicular diagonals (d1 and d2 in mm) is used, since the base area of Brinell indents is not accurately round.



Usually, this formula is not calculated for every single test to determine the hardness value. On the other hand, the hardness value can be calculated from tables or specially programmed test software. It shows the hardness value for all standardized ball diameters along with the test loads as a function of the average indent diameter (d), as mentioned in the above table.

The test force must be selected such that the average indent diameter (d) is between 0.24 D and 0.6 D.

In order to adhere to these limits, the test force must be synchronized with the ball diameter, which results in varied force-diameter indexes otherwise called load factors or loading levels. Here, the quotient of the test force and square of the ball diameter is maintained as constant (B = 0.102*F/D2). There are five common force-diameter indexes including 1, 2.5, 5, 10, and 30. The testing of material with varied ball diameters as well as test forces must be performed within the same force-diameter index to achieve the comparable test results as mentioned in the above table.

The ball diameter should be chosen in such a way that the indent covers the widest possible workpiece area, which is considered as the representative for the specimen.

According to the ISO 6506 standards, the test load should be increased to its ultimate value within a minimum of two seconds to a maximum of eight seconds. Usually, the dwell time for the test load comes around 10 to 15 seconds. If the dwell time gets extended, the time duration in seconds should also be mentioned in the hardness value, e.g.: 210 HBW 5/250/30 (dwell time of 30 s).



  1.     What are the typical Brinell Hardness numbers for metals?



Material

Brinell Hardness Number

Soft brass

60

Mild steel

130

Annealed chisel steel

235

White cast iron

415

Nitride surface

750



  1.     What are the steps to be completed before going ahead with the Brinell hardness testing process?

Before conducting the Brinell hardness test, it is mandatory to prepare the surface of the test material.

Surface preparation

Before placing the sample material in the Brinell hardness test unit, it should be either:

  Ground

  Machined

  Polished

  Lapped

Loads

Standards

Load Range

ISO 6506

1 kgf – 3000 kgf (9.807-29420 N)

ASTM E10

1 kgf – 3000 kgf (9.807-29420 N)

  • Sample thickness ASTM: At least 10 times the indentation depth
  • Sample thickness ISO: At least 8 times the indentation depth
  • Indentation time: 10-15 seconds



The outcome of the Brinell Hardness tester is widely used in the industries from accepting commercial shipments to varied quality control purposes. These outcomes correlate with other metallic characteristics including tensile strength, ductility, wear resistance, etc. Our Brinell hardness testers can withstand even the harshest environment, if required, with the help of an air filtration system to guard the interiors against dust.



  1.     What are the most common Brinell hardness test methods available in the market?

There are many common Brinell hardness test methods, with an equivalent material as well as hardness ranges. Most of the test methods can be achieved on any Brinell hardness testing machine.

The Brinell methods are largely classified into four subgroups such as HB2.5, HB5, HB10, HB30 each suitable for a varied group of materials. Each subgroup has an identical force/diameter ratio (F/D2). The measured Brinell hardness can be compared only within individual subgroups.

Test Method

Destination

Application/Material*

Hardness Range (HBW)

HBW 1/2.5

HBW 2.5/15.625

HBW 5/62.5

HBW 10/250

HB2.5

Light metals

8-55

HBW 1/5

HBW 2.5/31.25

HBW 5/125

HBW 10/500

HB5

Light metals

Cu/Al

Copper alloys

Aluminum alloys

16-110

HBW 1/10

HBW 2.5/62.5

HBW 5/250

HBW 10/1000

HB10

Light metals

Cu/Al

Copper alloys

Aluminum alloys

32-220

HBW 1/30

HBW 2.5/187.5

HBW 5/750

HBW 10/3000

HB30

Steel/Iron

95-650

* Materials mentioned in the tabulation are examples of typical materials only.

Explanation

  • HBW 2.5/187.5: Brinell 2.5 mm tungsten carbide ball with 187.5 kgf load.
  • HBW 5/750: Brinell 5.0 mm tungsten carbide ball with 750 kgf load.
